Using the Gemini Logical Simulator

In this tutorial, we show how you can use the simulator for QuEra’s Gemini logical device. We show how you can define a logical program, compile it for execution, and simulate the results.

# Builtins
import math
from collections import Counter

# Types
from typing import Any

import numpy as np
from bloqade import squin, types

# Functions and methods
from bloqade.decoders import BpLsdDecoder

# Gemini Simulator Device
from bloqade.gemini import GeminiLogicalSimulator

# Dialects
from bloqade.gemini import logical
from kirin.dialects import ilist
from kirin.ir.method import Method

import matplotlib.pyplot as plt


def render_steane_code_qubit(ax:plt.Axes | None = None,center:tuple[float,float]=(0,0))->plt.Axes:
    if ax is None:
        _fig,ax = plt.subplots()
        ax.set_aspect("equal")
        ax.set_xlim([-2+center[0],2+center[0]])
        ax.set_ylim([-2+center[1],2+center[1]])
        ax.axis("off")
    RED = "#EF2F55"
    PURPLE = "#670EFF"
    GREEN = "#57BC13"

    pos_center = np.zeros([2,7])
    pos_center[:,1::] = np.array([np.cos(np.linspace(0,2*np.pi,7)[0:6])*1.5,1.5*np.sin(np.linspace(0,2*np.pi,7)[0:6])])
    pos_center += np.array(center).reshape(2,1)

    ax.scatter(pos_center[0],pos_center[1],color="w",s=800,zorder=100,edgecolors="k")
    indexing = [2,0,3,6,4,5,1]
    for xi, yi, label in zip(pos_center[0],pos_center[1],indexing):
        ax.text(xi,yi,str(label),ha="center",va="center",zorder=200)

    ax.fill([pos_center[0,x] for x in [0,2,3,4]],[pos_center[1,x] for x in [0,2,3,4]],color=RED)
    ax.fill([pos_center[0,x] for x in [0,4,5,6]],[pos_center[1,x] for x in [0,4,5,6]],color=GREEN)
    ax.fill([pos_center[0,x] for x in [0,6,1,2]],[pos_center[1,x] for x in [0,6,1,2]],color=PURPLE)
    logical_label = [indexing.index(5), indexing.index(1), indexing.index(0)]
    ax.plot(pos_center[0,logical_label],pos_center[1,logical_label],color="k",ls="-",linewidth=5,zorder=50)

    return ax

# A minimal kernel that prepares a single qubit in an arbitrary state,
# so that it can be shown by the tsim renderer.
@logical.kernel(aggressive_unroll=True)
def main():
    reg = squin.qalloc(1)
    squin.u3(0.1,0.2,0.3,reg[0])
    return logical.terminal_measure(reg)
task = GeminiLogicalSimulator().task(main)

Some prototype stdutils functions: detectors and observables

We break abstraction a bit between physical and logical qubits. Each logical measurement is a batch of 7 physical measurements as indexed by the following diagram.

In order to correct the errors from a Steane code, we need to inform the decoder and detector error model of the decoding steps. This can be done by defining the detectors and the observables.

For the Steane code, the detectors are four-qubit parity patches corresponding to the three plaquettes of the code; in the following render the default detectors are the red/green/purple patches.

For the Steane code, the obsevables are three-qubit parity lines corresponding to edges of the code; in the following render the default observable is the black line.

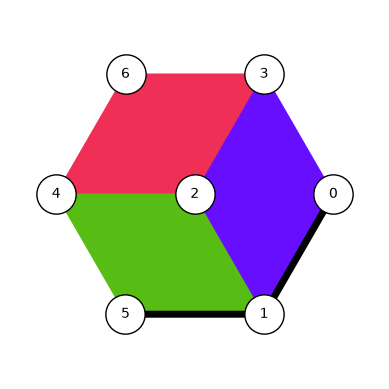

render_steane_code_qubit()
task.noiseless_tsim_circuit.diagram(width=400)

Lets define some default functions which use the squin.set_detector and squin.set_observable functions, which annotate the program for later analysis to generate the detector error model.

For the purposes of our demonstration, lets prepare a simple GHZ state. Note that the decorator is @logical.kernel instead of @squin.kernel.

@logical.kernel(aggressive_unroll=True, verify=True)
def main():
    reg = squin.qalloc(3)
    squin.h(reg[0])
    squin.cx(reg[0], reg[1])

    return logical.default_post_processing(reg) # Return the physical measurements

task = GeminiLogicalSimulator().task(main)

The task has several attributes. The key attributes are:

Attribute	Description
`task.run`	Run the task, sampling bitstrings from the noisy distribution
`task.noiseless_tsim_circuit`	The underlying physical circuit without noise
`task.tsim_circuit`	The underlying physical circuit including noise
`task.detector_error_model`	The DEM associated with the noisy circuit
`task.visualize`	Render an interactive atom move.

Rendering of the noiseless circuit:

task.noiseless_tsim_circuit.diagram(height=task.noiseless_tsim_circuit.num_qubits*25)

Rendering of the noisy circuit:

Includes 1 and 2 qubit gate error, spectator errors, and move errors.

task.tsim_circuit.diagram(height=task.tsim_circuit.num_qubits*25)

Running the task

The task.run attribute compiles the task to tsim and then samples from it. Note that the majority of the time is spent compiling the task; the sampler is very fast.

result = task.run(1, with_noise=True)
result_wo_noise = task.run(1, with_noise=False)

# After recompilation, the task runs very quickly.
result = task.run(10000, with_noise=True)
result_wo_noise = task.run(10000, with_noise=False)

The result object has several meaningful attributes that are useful for analysis:

Attribute	Description
`result.return_values`	The values returned from the kernel
`result.detectors`	The parity values of the annotated detectors
`result.observables`	The parity values of the annotated observables
`result.measurements`	The physical qubit measurements

For each value, the zeroth dimension is the shot index.

detectors are a flattened list of [ [detectors of qubit 0 ], [detectors of qubit 1] [ ... ] ]
observables are a list of [ obsevable of qubit 0, observable of qubit 1, ... ]
measurements is a nested list of [[7 physical measurements of qubit 0], [7 physical measurements of qubit 1], ...]

Indexing is in the same ordering of however the qubits were measured in the logical.terminal_measure statement.

return_values = result.return_values
detectors = np.asarray(result.detectors)
observables = np.asarray(result.observables)
physical = np.asarray(result.measurements)
observables_without_noise = np.asarray(result_wo_noise.observables)

print(detectors.shape)
print(observables.shape)
print(physical.shape)

(10000, 9)
(10000, 3)
(10000, 21)

Decoding and post-selection

Decoders can be inherited from elsewhere but follow a common pattern. Given the detector error model, flips to the logical qubits can be decoded based on the detector triggers. Because the code is linear, the corrected code is simply the XOR of the flips and the observables.

Alternatively, one may postselect on having no errors, or all detectors being zero.

# Correct
flips = BpLsdDecoder(task.detector_error_model).decode(detectors)
observables_corrected = observables ^ flips
print("Average bits flipped:", np.average(flips))

# Postselect
post_selection = np.all(detectors == 0, axis=1)
observables_postselected = observables[post_selection, :]
print("Postselection rate:  ", len(observables_postselected) / len(observables))

Average bits flipped: 0.13993333333333333
Postselection rate:   0.6132

Analysis 1: parity

For the GHZ state, we have the convenience of the final state being uniformly sampled from 00 or 11, with 01 or 10 indicating an error outside of the distribution. Thus, computing the parity of the observables can serve as a proxy of the fidelity of the distribution: parity 0 means no error, parity 1 means error, and the average parity is the error rate. Postselection and correction decreases the parity, meaning the final error is better!

print("Average parity (before correction):", np.average(observables[:,0] ^ observables[:,1]))
print("Average parity (after correction):", np.average(observables_corrected[:,0] ^ observables_corrected[:,1]))
print("Average parity (after postselection):", np.average(observables_postselected[:,0] ^ observables_postselected[:,1]))

Average parity (before correction): 0.0978
Average parity (after correction): 0.0789
Average parity (after postselection): 0.002446183953033268

Some helper functions and standard utilities to analyze statistical divergence

# helper functions to analyze statistical distribution of logical measurements
def get_hist(obs_array: np.ndarray):
    return Counter(tuple(map(int, x)) for x in obs_array[:])

def kl_divergence(p_hist: Counter, q_hist: Counter) -> float:
    """Compute the KL divergence D_KL(P || Q) between two histograms."""
    total_p = sum(p_hist.values())
    total_q = sum(q_hist.values())
    if total_p == 0 or total_q == 0:
        return float("inf")  # Infinite divergence if one distribution is empty
    divergence = 0.0
    for key in p_hist:
        p_prob = p_hist[key] / total_p
        q_prob = q_hist.get(key, 0) / total_q
        if q_prob > 0:
            divergence += p_prob * math.log(p_prob / q_prob)
        else:
            divergence += p_prob * math.log(p_prob / (1e-10))  # Avoid log(0)
    return divergence

The Kullback-Leibler divergence $D_{KL}(P||Q)$ measures the dissimilarity between two probability distributions. When the KL divergence is zero, there is no loss when the noisy distribution (Q) is used to represent the perfect distribution (P). Similar to the parity measurement above, we find that the divergence is lower for corrected and postselected distributions. Note that the distribution is approximated from finite sampling (a simple frequentist bootstrap) so the KL divergence is an upper bound on the true distribution (in expectation).

observables_hist = get_hist(observables)
observables_decoded_hist = get_hist(observables_corrected)
observables_postselected_hist = get_hist(observables_postselected)
observables_wo_noise_hist = get_hist(observables_without_noise)

# compute and print the KL divergence between the histograms
print("KL divergence between noiseless and raw observables:",kl_divergence(observables_wo_noise_hist, observables_hist))
print("KL divergence between noiseless and decoded observables:",kl_divergence(observables_wo_noise_hist, observables_decoded_hist))
print("KL divergence between noiseless and post-selected observables:",kl_divergence(observables_wo_noise_hist, observables_postselected_hist))

KL divergence between noiseless and raw observables: 0.16064702697682368
KL divergence between noiseless and decoded observables: 0.13049818616321002
KL divergence between noiseless and post-selected observables: 0.005560317168367126

Dos and do nots for kernels

A valid kernel for Gemini must:

Have less than 10 qubits
Only have a single non-Clifford gate per qubit, acting as a single-qubit gate as the first gate on each qubit
Measurement is in Z basis only.

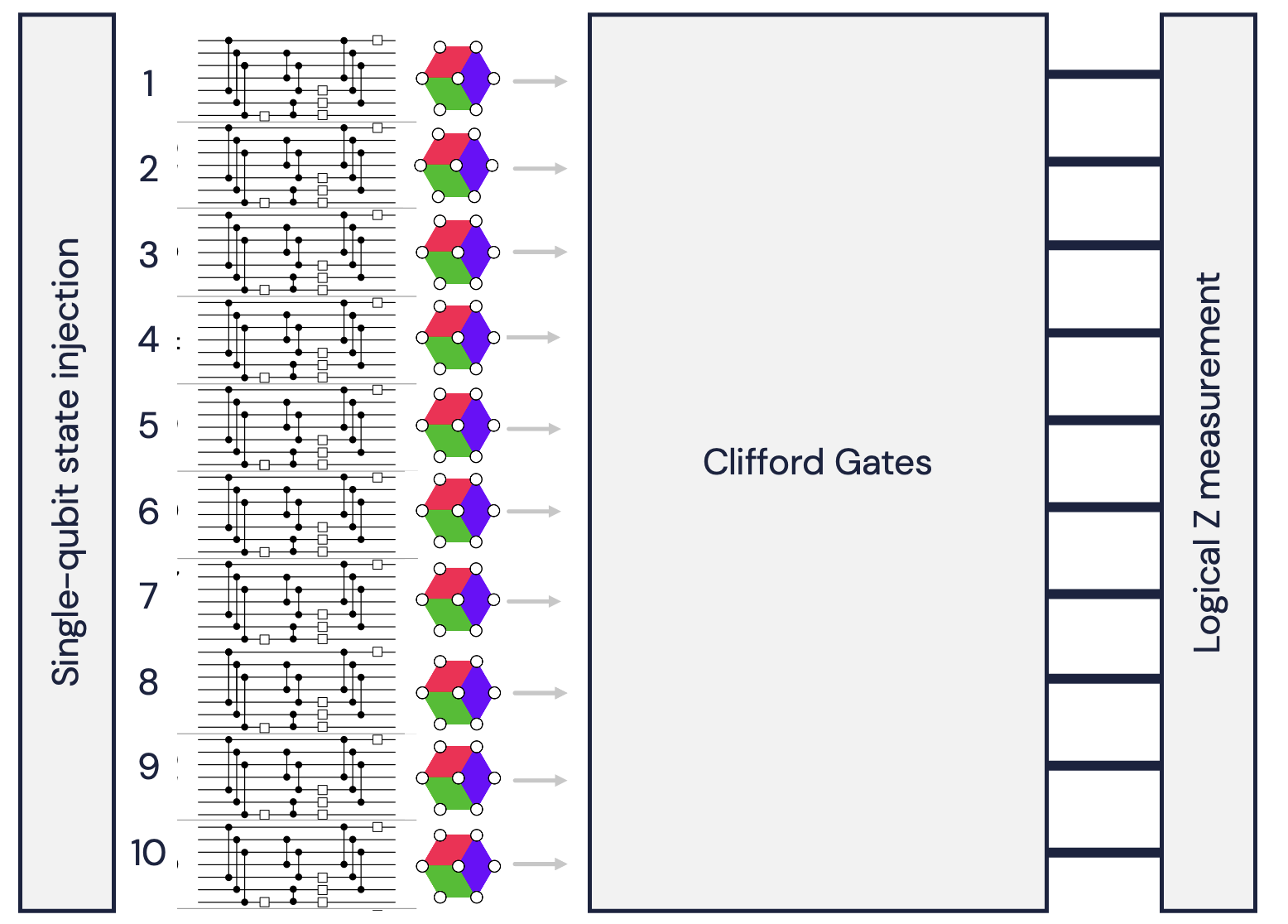

Gemini logical kernel gate and measurement rules

Too many qubits

try:
    @logical.kernel(aggressive_unroll=True, verify=True)
    def main():
        reg = squin.qalloc(12)
        squin.h(reg[0])
        squin.cx(reg[0], reg[1])

        return logical.default_post_processing(reg)

    task = GeminiLogicalSimulator().task(main)
except BaseException as e:
    print("Error during kernel definition or task creation:", e)

Error during kernel definition or task creation:
Validation failed with 3 violation(s):

Gemini Logical Validation:
  - Qubit allocations exceeded 10.
    (inlined from 'qalloc' called at /tmp/ipykernel_5217/1299499624.py:4; decorate the calling kernel with `aggressive_unroll=True` to inline and unroll the call, or with `verify=False` to skip these checks)
      File
"/codebuild/output/src1944220347/src/bloqade-website/emitters/notebooks/.venv/lib/python3.12/site-packages/bloqade/
qubit/stdlib/_new.py", line 32, col 15
    │
    │  def _new(qid: int) -> qubit.Qubit:
  32│      return qubit.new()
    │             ^^^^^^^^^^^
    │
    │  return ilist.map(_new, ilist.range(n_qubits))

  - Qubit allocations exceeded 10.
    (inlined from 'qalloc' called at /tmp/ipykernel_5217/1299499624.py:4; decorate the calling kernel with `aggressive_unroll=True` to inline and unroll the call, or with `verify=False` to skip these checks)
      File
"/codebuild/output/src1944220347/src/bloqade-website/emitters/notebooks/.venv/lib/python3.12/site-packages/bloqade/
qubit/stdlib/_new.py", line 32, col 15
    │
    │  def _new(qid: int) -> qubit.Qubit:
  32│      return qubit.new()
    │             ^^^^^^^^^^^
    │
    │  return ilist.map(_new, ilist.range(n_qubits))

  - kernel allocates 12 qubits, exceeding the maximum of 10
      File "/tmp/ipykernel_5217/1299499624.py", line 8, col 43
   │  squin.cx(reg[0], reg[1])
   │
  8│  return logical.default_post_processing(reg)
   │                                         ^^^

Repeated non-Clifford rotations

try:
    @logical.kernel(aggressive_unroll=True, verify=True)
    def main():
        reg = squin.qalloc(10)
        squin.t(reg[0])
        squin.t(reg[0])
        squin.cx(reg[0], reg[1])

        return logical.default_post_processing(reg)

    task = GeminiLogicalSimulator().task(main)
except BaseException as e:
    print("Error during kernel definition or task creation:", e)

Error during kernel definition or task creation:
Validation failed with 1 violation(s):

Gemini Logical Validation:
  - Non-clifford gate t can only be used for initial state preparation, i.e. as the first gate!
    (inlined from 't' called at /tmp/ipykernel_5217/4047127049.py:5; decorate the calling kernel with `aggressive_unroll=True` to inline and unroll the call, or with `verify=False` to skip these checks)
      File
"/codebuild/output/src1944220347/src/bloqade-website/emitters/notebooks/.venv/lib/python3.12/site-packages/bloqade/
squin/stdlib/broadcast/gate.py", line 71, col 11
    │      qubits (ilist.IList[Qubit, Any]): Target qubits.
    │  """
  71│  gate.t(qubits, adjoint=False)
    │         ^^^^^^

Non-Clifford rotation not as the first gate (This is the same validation error)

try:
    @logical.kernel(aggressive_unroll=True, verify=True)
    def main():
        reg = squin.qalloc(10)
        squin.h(reg[0])
        squin.cx(reg[0], reg[1])
        squin.t(reg[0])

        return logical.default_post_processing(reg)

    task = GeminiLogicalSimulator().task(main)
except BaseException as e:
    print("Error during kernel definition or task creation:", e)

Error during kernel definition or task creation:
Validation failed with 1 violation(s):

Gemini Logical Validation:
  - Non-clifford gate t can only be used for initial state preparation, i.e. as the first gate!
    (inlined from 't' called at /tmp/ipykernel_5217/818871875.py:7; decorate the calling kernel with `aggressive_unroll=True` to inline and unroll the call, or with `verify=False` to skip these checks)
      File
"/codebuild/output/src1944220347/src/bloqade-website/emitters/notebooks/.venv/lib/python3.12/site-packages/bloqade/
squin/stdlib/broadcast/gate.py", line 71, col 11
    │      qubits (ilist.IList[Qubit, Any]): Target qubits.
    │  """
  71│  gate.t(qubits, adjoint=False)
    │         ^^^^^^

Explicitly annotate parallelism

If parallelism is not annotated, the program will implement each two qubit gate sequentially. We currently do not have any auto-paralellization passes.

def logical_kernel_wrapper(kernel:Method[[], ilist.IList[types.Qubit, Any]]) -> Method:
    """
    A helper function that wraps a kernel that returns a qubit register that has
    had some computation performed on it and wraps it in a logical kernel.
    """
    @logical.kernel(aggressive_unroll=True, verify=True)
    def terminal_main():
        reg = kernel()

        logical.default_post_processing(reg)
    return terminal_main

@squin.kernel
def unparallelized_main()->ilist.IList[types.Qubit, Any]:
    """
    A kernel that annotates no parallelism, even though they exist
    """
    reg = squin.qalloc(4)
    squin.cx(reg[0], reg[1])
    squin.cx(reg[2], reg[3])
    return reg

@squin.kernel
def parallelized_main()->ilist.IList[types.Qubit, Any]:
    """
    An equivalent kernel to the above, but with parallelism annotated via broadcast operations.
    """
    reg = squin.qalloc(4)
    squin.broadcast.cx(ilist.IList([reg[0], reg[2]]), ilist.IList([reg[1], reg[3]]))
    return reg

@squin.kernel
def conflicted_parallelized_main()->ilist.IList[types.Qubit, Any]:
    """
    A kernel where parallelism is annotated, but the moves cannot be done all at once due to AOD constraints.
    """
    reg = squin.qalloc(4)
    squin.broadcast.cx(ilist.IList([reg[0], reg[1]]), ilist.IList([reg[3], reg[2]]))
    return reg

unparallelized_main = logical_kernel_wrapper(unparallelized_main)
parallelized_main = logical_kernel_wrapper(parallelized_main)
conflicted_parallelized_main = logical_kernel_wrapper(conflicted_parallelized_main)

task_unparallelized = GeminiLogicalSimulator().task(unparallelized_main)
task_parallelized = GeminiLogicalSimulator().task(parallelized_main)
task_conflicted_parallelized = GeminiLogicalSimulator().task(conflicted_parallelized_main)

To illustrate the impact of noise on the different types of kernels above, we print a “fidelity” value, which is the probability that all qubits experience no gate errors.

The unparallelized circuit sequentially does the two gates with two sets of moves.

_, fidelity = task_unparallelized.fidelity_bounds()
print("Fidelity bounds for unparallelized main:", fidelity)
task_unparallelized.tsim_circuit.diagram(height=task_unparallelized.tsim_circuit.num_qubits*10)

Fidelity bounds for unparallelized main: 0.5160764040517819

The parallelized circuit does a parallel move and implements both gates at the same time. Because only one CZ pulse is applied, the fidelity is higher.

_, f = task_parallelized.fidelity_bounds()
print("Fidelity bounds for parallelized main:", f)
task_parallelized.tsim_circuit.diagram(height=task_parallelized.tsim_circuit.num_qubits*10)

Fidelity bounds for parallelized main: 0.637219665010538

The parallelized but conflicted circuit implements two sequential moves and then does both gates at the same time. As a result, the fidelity is lower.

_, f = task_conflicted_parallelized.fidelity_bounds()
print("Fidelity bounds for conflicted parallelized main:", f)
task_conflicted_parallelized.tsim_circuit.diagram(height=task_conflicted_parallelized.tsim_circuit.num_qubits*10)

Fidelity bounds for conflicted parallelized main: 0.46021626648276515

As we can see from the above examples, noise is added to the circuit based on the moves required for the circuit as well as the number of CZ pulses.
