Digital Quantum Computing

This section provides the quick start guide for programming digital quantum circuits using Bloqade.

Open Quantum Assembly Language (QASM2)

Bloqade provides a set of dialects for QASM2 and our custom extensions to model parallel gates in neutral atom architectures. The QASM2 dialect is a simple quantum assembly language that allows you to write quantum circuits in a human-readable format. However, one should note that QASM2 is a very restricted language and does not support all the features of a high-level language.

For example, there is a separation of gate routines declared with gate and main program written as a sequence of gate applications. While the gate routine is similar to a function in many ways, it does not support high-level features such as recursions (due to lack of if statement support inside) or control flows.

While in our initial release, we support QASM2 as the first eDSL, we plan to use it as a compile target instead of a programming language for long-term development. We are working on a more expressive language that will be more suitable for quantum programming at error-corrected era.

Warning

This page is under construction. The content may be incomplete or incorrect. Submit an issue on GitHub if you need help or want to contribute.

QASM2 and its extensions

Bloqade provides a set of dialects (missing link) for QASM2 and our custom extensions to model parallel gates in neutral atom architectures. The basic QASM2 functionality can be enabled via

pip install bloqade[qasm2]

Quick Example

When programming with QASM2, the most common usage is via the qasm2.extended decorator, e.g the following Quantum Fourier Transform (QFT) circuit:

import math
from bloqade import qasm2

@qasm2.extended
def qft(qreg: qasm2.QReg, n: int):
    if n == 0:
        return qreg

    qasm2.h(qreg[0])
    for i in range(1, n):
        qasm2.cu1(qreg[i], qreg[0], 2 * math.pi / 2**i)
    qft(qreg, n - 1)
    return qreg

While the syntax is similar to Python, the qasm2.extended decorator actually compiles the qft function into lower-level intermediate representation (IR) code that can be later executed on a simulator (available via PyQrack) or a quantum computer.

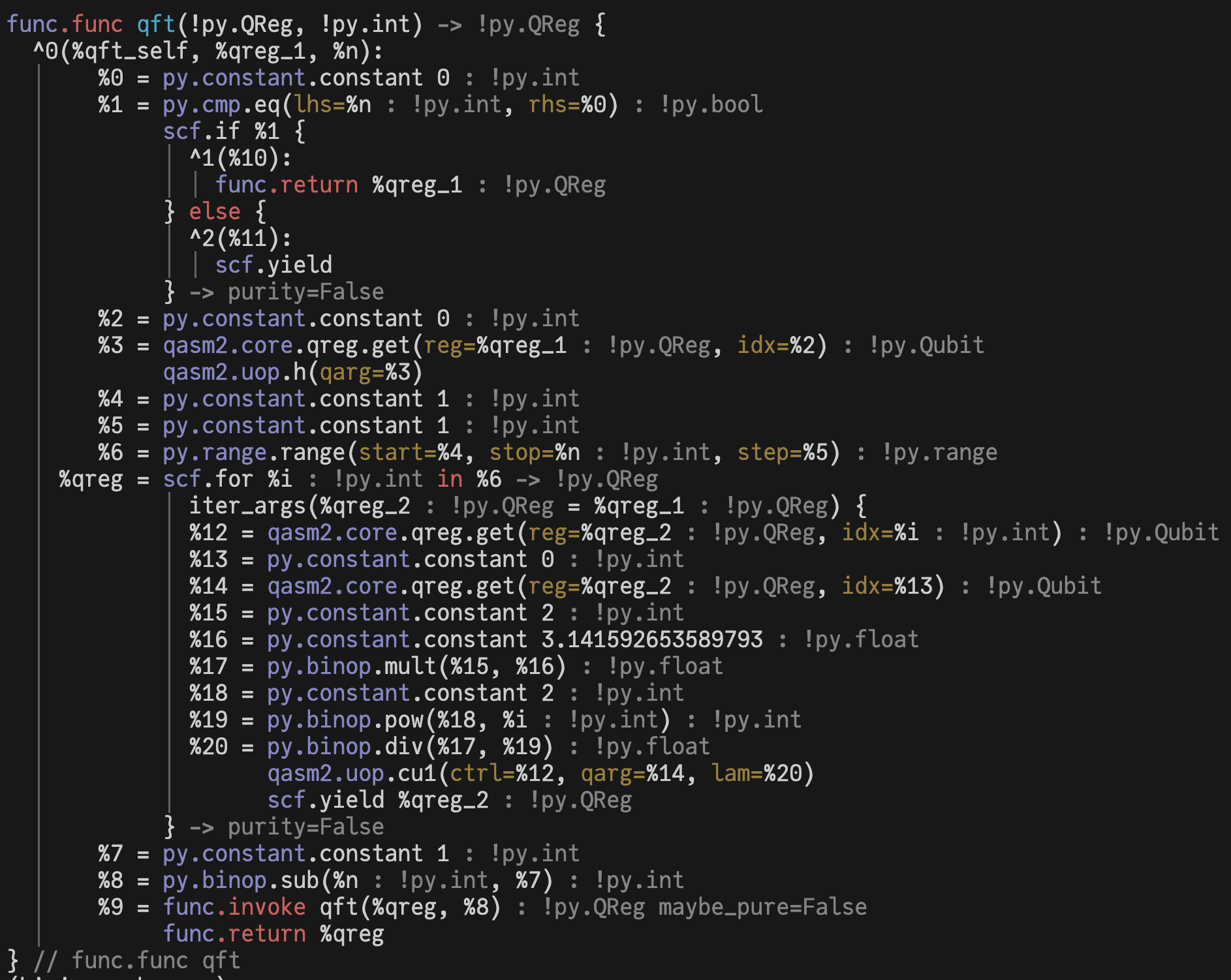

You can inspect the initial IR code by calling the pretty printer:

qft.print()

QFT IR

Running simulations

The program can be executed via a simulator backend, e.g. PyQrack, you can install it via

pip install bloqade[pyqrack]
# or if you want to use the CPU only version
pip install bloqade[pyqrack-cpu]

@qasm2.extended
def main():
    return qft(qasm2.qreg(3), 3)

device = PyQrack()
qreg = device.run(main)
print(qreg)

Emitting QASM2 code

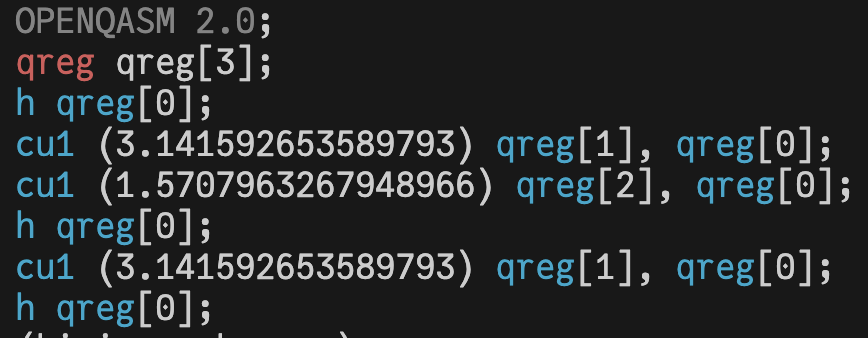

You can also emit QASM2 code from the IR code:

from bloqade.qasm2.emit import QASM2 # the QASM2 target
from bloqade.qasm2.parse import pprint # the QASM2 pretty printer

target = QASM2()
ast = target.emit(main)
pprint(ast)

QFT QASM2

Understanding the compilation process

The compilation process is divided into several stages:

  1. Lowering: the decorator qasm2.extended takes Python Abstract Syntax Tree (AST) and lowers it into Kirin IR in the Static Single Assignment (SSA) form.
  2. Interpretation: when invoking the PyQrack backend, the IR code is interpreted via Kirin's IR interpreter (missing link) with the PyQrack runtime backend.
  3. Target code generation: when emitting QASM2 code:
  4. The IR code gets aggressively inlined and all constant expressions are evaluated.
  5. All loops and control flow are unrolled.
  6. All compatible Python expressions (e.g sin, arithmetics) are translated into QASM2 expression.
  7. The QASM2 code is emitted as QASM2 AST for pretty printing.

In fact, the decorator qasm2.extended is a group of smaller dialects:

extended = structural_no_opt.union(
     [
         inline,
         uop,
         glob,
         noise,
         parallel,
         core,
     ]
 )

where structural_no_opt is the base dialect group that provides the basic control flow, common Python expressions (but not all), then:

  • core provides the core QASM2 operations such as register allocation, measurement and reset.
  • uop provides the unary operations, such as standard Pauli gates, rotation gates, etc.

The following dialects are specific to neutral atom quantum computing as an extension:

  • glob provides the global gates (Rydberg specific)
  • noise provides the noise channels
  • parallel provides the parallel gate support (Rydberg specific).
  • inline dialect provides the inline QASM string

Strict QASM2 mode

While the qasm2.extended decorator provides a lot of high-level features as an extension of QASM2, you may want to program in strict QASM2 mode for compatibility reasons. You can do this by using the qasm2.main and qasm2.gate decorators:

@qasm2.main
def main():
    qasm2.h(0)
    qasm2.cx(0, 1)
    qasm2.measure(0)
    qasm2.measure(1)
    return qasm2.qreg(2)

which corresponding to the following QASM2 code:

OPENQASM 2.0;
include "qelib1.inc";

qreg q[2];
creg c[2];

h q[0];
cx q[0], q[1];
measure q[0] -> c[0];
measure q[1] -> c[1];

Note that the return values are all ignored due to lack of equivalent in QASM2.
